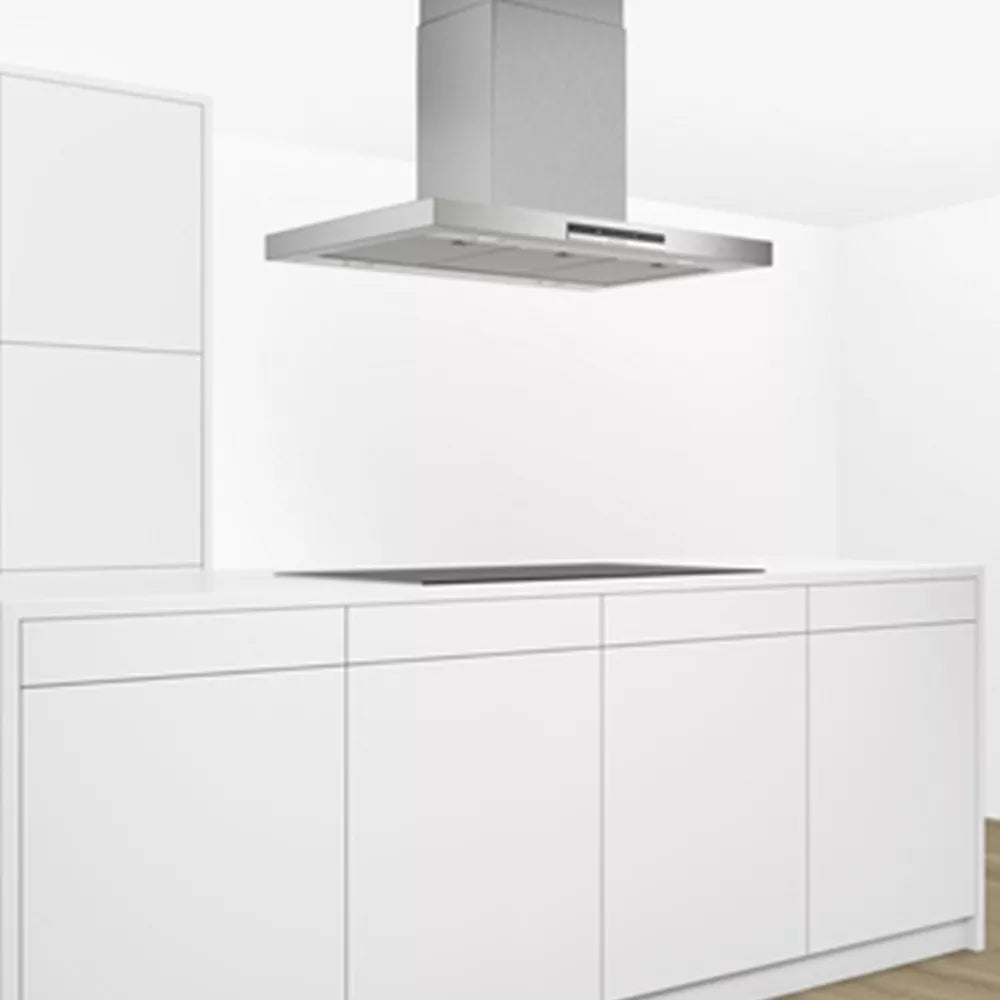

Bosch Series 4 Island Extractor Hood 90 cm - DIB97IM50

• Especially silent: maximal extractor performance with minimal noise
• Easy-to-clean interior: hidden screws and cables along with rounded edges make cleaning easy.
• Grease filtration level: filters out over 85% of the grease from kitchen air

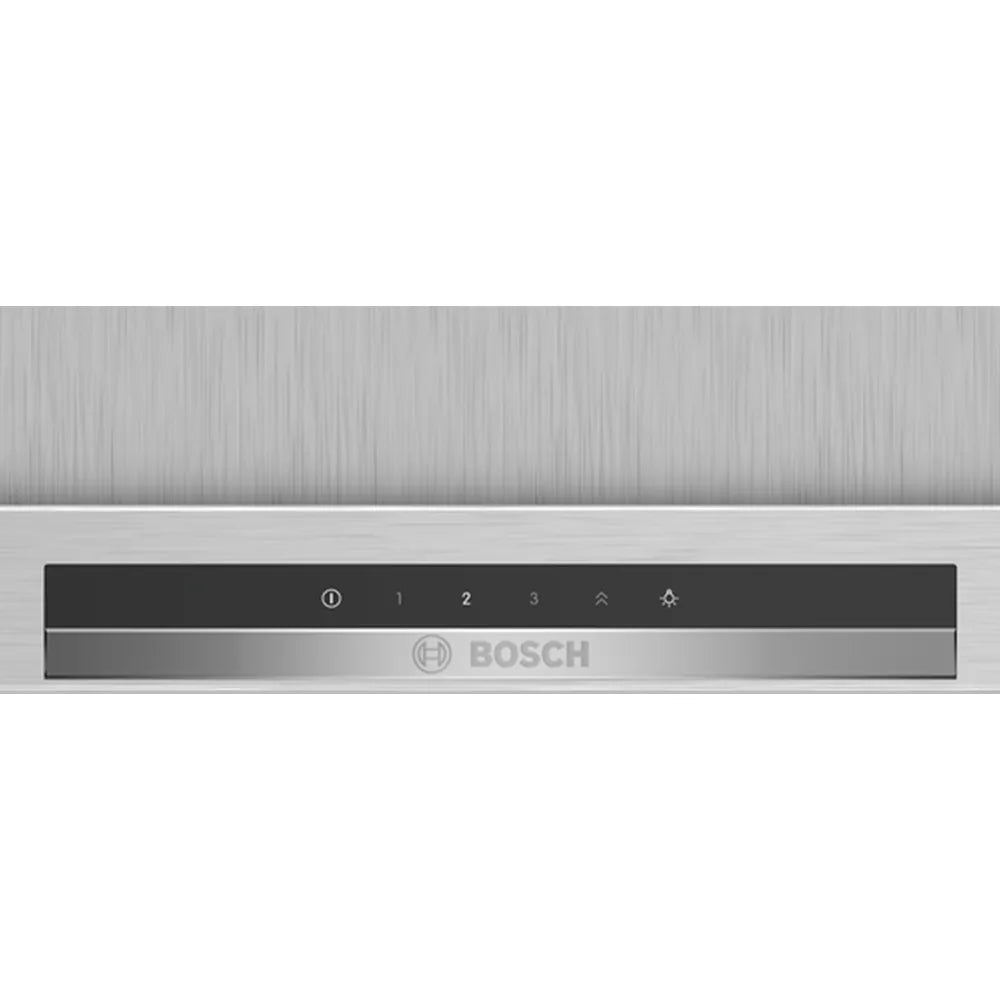

• Touch Select control: quick touch-control selection of desired settings and light. Touch Select control
• LED-Illumination: The energy-saving lighting provides bright and clear lighting for the hob area.

Technical information:

- Island extractor
- 90 cm wide
- Brushed steel
- Suitable for ducted or recirculating operation
- Recirc. kit or clean air kit
- Designed for ceiling mounted installation
- touch control for extractor speeds and light
- Electronic controls
- touch control with Electronic display
- 3 speed + intensive operation via touch control
- Electronic controls via touch control with Electronic display
- touch control (3 speed + intensive operation) with Electronic display
- 3 speed + intensive operation
- Intensive op. revert dur.: 6 min.
- Easy to clean
- 4 x 1,5W LED
- Light Intensity: 409 lux
- Colour Temperature: 3500 K

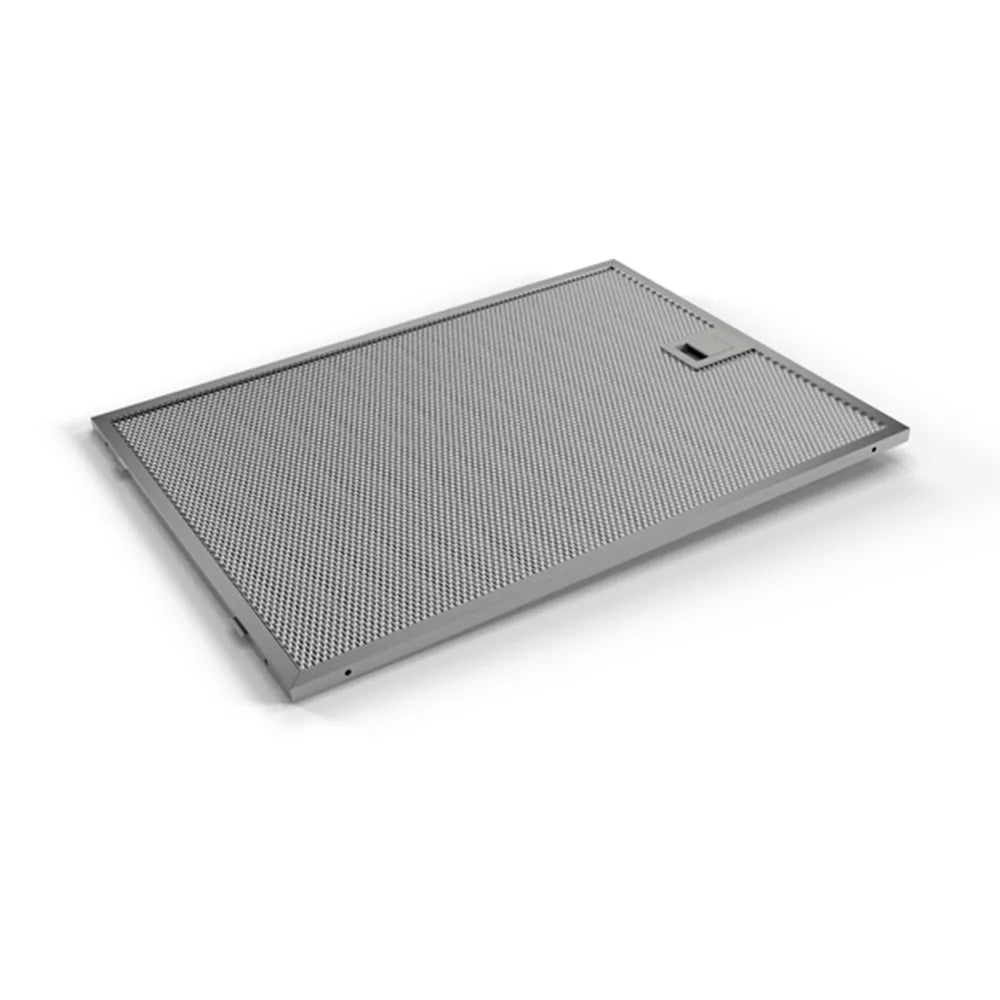

- Removable metal grease filters, dishwasher safe
- Extraction rate according to DIN/EN 61591 ø 15 cm: max. Normal 438 m³/h Intensive 754 m³/h
- Ducted extraction rate according to DIN/EN 61591max. 438 m³/h
- Maximum extraction 438 m3/h
- Extraction rate exhaust air according to EN 61591:
- max. normal use438 m³/h, intensive 754 m³/h
- Dimensions recirculating with CleanAir module (HxWxD): 812-1044 x 898 x 600 mm
- Additional noise insulation
- Noise level according to EN 60704-3 und EN 60704-2-13 at max. normal use exhaust air: 57 dB(A) re 1 pW (44 dB(A) re 20 µPa sound pressure)
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use:57 dB(A) re 1 pW (44dB(A) re 20 µPa sound pressure)
- Intensive:68 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure)
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Yes
- Max. extraction rate: 754 m3/h
- Dimensions exhaust air (HxWxD): 744-924 x 898 x 600 mm

- Dimensions recirculating (HxWxD): 744-1044 x 898 x 600 mm
- Power rating: 256 W
- Electrical cable length 1.3 m
- Voltage: 220 - 240 V
